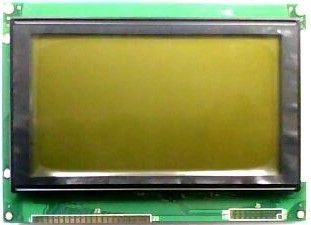

Model：	FJM240128A-7
Pixels(HxV)：	240x128
Outline DImension( HxV)：	144.0x104.0
Active Area：	114.0x64.0
Pixel Pitch：	0.40x0.40
Driver：	T6963C
Remark：	3.3V or 5V power supply, 20PIN double the right exit

Detailed information

Dimensions: 144.0x 104 mm

Display area: 114.0x64 mm (5.1 inches)

Size: 138.0*97.0 positioning hole

Controller: T6963C. Can 3.3V, 5V power supply

Methods: COB

Backlight type: LED

Interface: parallel, double the right exit 20PIN

Interface definition:

1.FG

2.VSS

3.VDD

4.VO

5.R/W

6.RD

7.CE

8.C/D

9.VOUT

10.REST

11-18.DB0-DB7

19.FS

20.BLA (NC)
