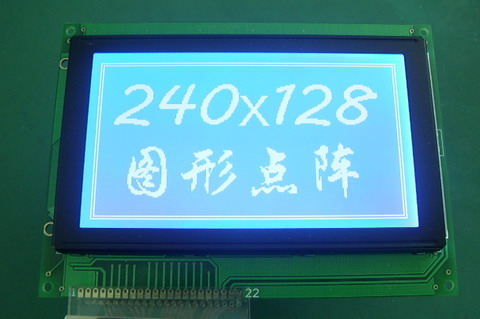

Model：	FJM240128A-4
Pixels(HxV)：	240x128
Outline DImension( HxV)：	144.0x104.0
Active Area：	114.0x64.0
Pixel Pitch：	0.40x0.40
Driver：	T6963C
Remark：	3.3V or 5V power supply, 22PIN left

Detailed information

FJM240128A-4

Outline DImension(HxV):: 144.0x 104 mm

Active area: 114.0x64 mm (5.1 inches)

The size of the positioning hole: 138.0*97.0

Drive: T6963C. Can 3.3V, 5V power supply

Process: COB

Backlight type: LED
