Standard LCD

Location：Home > Products > Standard LCD

Model：	FJM240128A-6
Pixels(HxV)：	240x128
Outline DImension( HxV)：	144.0x104.0
Active Area：	114.0x64.0
Pixel Pitch：	0.40x0.40
Driver：	T6963C
Remark：	3.3V or 5V power supply, 22PIN left

Detailed information

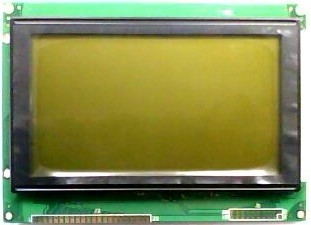

FJM240128A-6

Outline Dimensions(HxV): 144.0x 104 mm

Active area: 114.0x64 mm (5.1 inches)

The size of the positioning hole: 138.0*97.0

Driver: T6963C. Can 3.3V, 5V power supply

Process: COB

Backlight type: LED pin hole to the left edge of space 15mm

Interface definition:

1.FG

2.VSS

3.VDD

4.V0

5.R/W

6.RD

7.CE

8.C/D

9.REST

10-17.DB0-DB7

18.FS

19.VOUT

20.BLA

21.BLK

22.NC
