Touch Panel products

Location：Home > Products > Touch Panel products

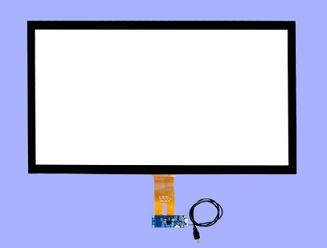

Model：	21.5寸 CTP FJ-C8389 V1
Pixels(HxV)：
Outline DImension( HxV)：	506(H) x 303(V) x 2.9(D) mm
Active Area：	476.64(H) x 268.11(V) mm
Pixel Pitch：
Driver：	ILI2302
Remark：

Detailed information

Parameter：

1.Structure: G+G
2.Driver IC: ILI2302
3.Interface: USB / IIC
4.Transmittance: ≥85%
5.Hardless: 6H
6.Dimensions：506(H) x 303(V) x 2.9(D) mm
7.Active Area：476.64(H) x 268.11(V) mm
8.Operating conditions: -10℃～+60℃，≤85%RH
9.Storage conditions: -10℃～+65℃，≤85%RH
