1、Basic parameter

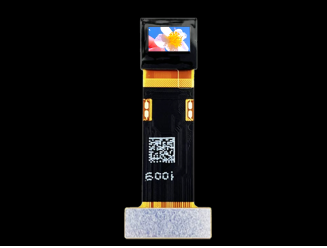

VX039-FHP-NH4-YC03 is a 0.39 inch(1 cm) diagonal, FHD resolution(1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.
⚫ Small-size, high resolution 0.39 FHD Display PPI=5644
⚫ AP Operated Resolution (8*M, M=40~240) x RGB x (8*N, N=30~135)
⚫ Full color mode,16.7M colors
⚫ Fast response
⚫ Thin and light in weight
⚫ Color enhancement, Sharpness enhancement
⚫ High contrast mode
⚫ High fluency mode
⚫ Power-saving (PS) mode
⚫ Scan direction selection, up or down
⚫ Interface,Support MIPI only or MIPI+I2C
2、Optical characteristic
|
