PMOLED

Location：Home > Products > PMOLED

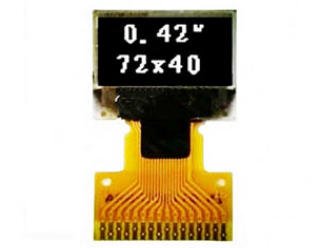

Model：	0.42" FJG-7240TSWEG01
Pixels(HxV)：	72 x 40
Outline DImension( HxV)：	12.0 x 11.0 x 1.25 mm
Active Area：	9.196 x 5.18 mm
Pixel Pitch：	0.108 x 0.11 mm
Driver：	SSD1306
Remark：	Monochrome (White)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/40 Duty

♦ Number of Pixels: 72 x 40
♦ Panel Size: 12 x 11 x 1.25 (mm)
♦ Active Area: 9.196 x 5.18 (mm)
♦ Pixel Pitch: 0.128 x 0.13 (mm)
♦ Pixel Size: 0.108 x 0.11 (mm)

♦ Driver IC: SSD1306

♦ Interface: 4-wire SPI, I2C

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing
