Customized LCD

Location：Home > Products > Customized LCD

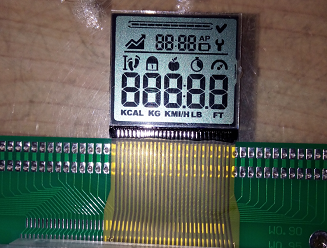

Model：	TN Segment code LCD
Pixels(HxV)：	Segment code LCD
Outline DImension( HxV)：	28.9 x 24/26.5 x 2.0 mm
Active Area：	26.0 x 21.4 mm
Pixel Pitch：	/
Driver：	/
Remark：	Customized Segment code LCD

Detailed information

Display Type: TN / Positive
View Direction: 6 O' CLOCK
Polarizer Mode: Reflective
Driver Method: 1/4 Duty 1/3 Bias
Operating Voltage: 3.0V
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -10 ~ 60 °C

Connection: FPC
