1、Basic function
Refresh Method: Full refresh for 3s、Partial refresh for 0.3s
Display direction: Horizontal and vertical
Drawing method: GUI Drawing
Driving method: STM32、Arduino、MicroPython
2、Basic parameters

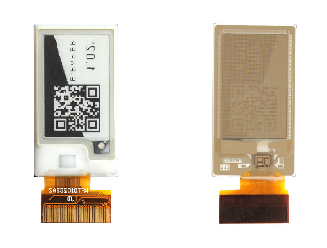

Product size: 1.02 inches
Resolution: 128x80
Color: Black and white
Drive IC: UC8157
Interface: SPI
Working voltage: 3.3V
Operating Temp: 0~50 ℃
Storage Temp: -25~70 ℃
3、Main features
Display feature: Bistable display (maintains the last screen after power outage)
Display mode: Pure reflection
Angle of view: Wide angle of view, greater than 170 degrees
Surface treatment: Hard coating anti glare treatment
Environmentally friendly and low-carbon: No refresh, no power consumption
Eye protection: No blue light, no radiation
4、Product Application
Shelf tags, Smart tags, Wearable devices, Smart home applications, Industrial instruments, Smart card.
5、Engineering drawing
|
