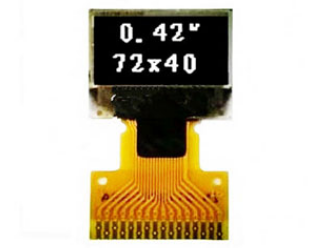

1、基础参数
♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/40 Duty
♦ Number of Pixels: 72 x 40
♦ Panel Size: 12 x 11 x 1.25 (mm)
♦ Active Area: 9.196 x 5.18 (mm)
♦ Pixel Pitch: 0.128 x 0.13 (mm)
♦ Pixel Size: 0.108 x 0.11 (mm)
♦ Driver IC: SSD1306
♦ Interface: 4-wire SPI, I2C
2、绝对最大值&光学特性
3、工程图纸
|
