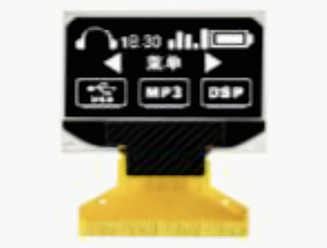

1、基础参数
♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/64 Duty
♦ Number of Pixels: 128 x 64
♦ Panel Size: 24.7 x 16.6 x 1.28 (mm)
♦ Active Area: 21.74 x 11.18 (mm)
♦ Pixel Pitch: 0.17 x 0.17 (mm)
♦ Pixel Size: 0.154 x 0.154 (mm)
♦ Weight: 1.09g
♦ Driver IC: ST7315
♦ Interface: 3/4-wire SPI; I2C
2、绝对最大值&光学特性
3、工程图纸
焊接款
接插款
|
