PMOLED

Location：Home > Products > PMOLED

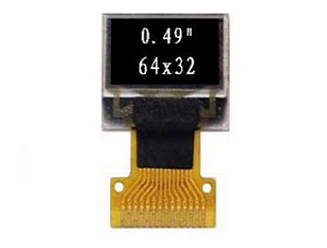

Model：	0.49“ FJG-6432TSWBG02
Pixels(HxV)：	64 x 32
Outline DImension( HxV)：	14.5 x 11.6 x 1.22 mm
Active Area：	11.18 x 5.58 mm
Pixel Pitch：	0.155 x 0.155 mm
Driver：	ST7315
Remark：	Monochrome (White)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/32 Duty

♦ Number of Pixels: 64 x 32
♦ Panel Size: 14.5 x 11.6 x 1.22 (mm)
♦ Active Area: 11.18 x 5.58 (mm)
♦ Pixel Pitch: 0.175 x 0.175 (mm)
♦ Pixel Size: 0.155 x 0.155 (mm)
♦ Weight: 0.405g

♦ Driver IC: ST7315

♦ Interface: IIC

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing
