PMOLED

Location：Home > Products > PMOLED

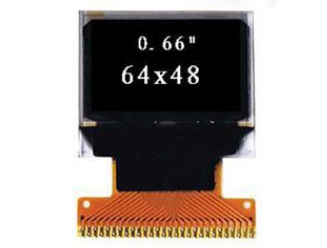

Model：	0.66" FJ-6448TSWEG03
Pixels(HxV)：	64 x 48
Outline DImension( HxV)：	18.46 x 18.1 x 1.25 mm
Active Area：	13.42 x 10.06 mm
Pixel Pitch：	0.19 x 0.19 mm
Driver：	SSD1306
Remark：	Monochrome (White/Blue)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/48 Duty

♦ Number of Pixels: 64 x 48
♦ Panel Size: 18.46 x 18.1 x 1.25 (mm)
♦ Active Area: 13.42 x 10.06 (mm)
♦ Pixel Pitch: 0.21 x 0.21(mm)
♦ Pixel Size: 0.19 x 0.19 (mm)

♦ Driver IC: SSD1306

♦ Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing

Welded type

Connector
