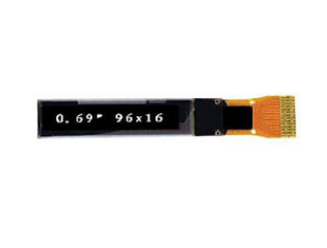

1、Basic parameter
♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/16 Duty
♦ Number of Pixels: 96 x 16
♦ Panel Size: 26.30 x 8.00 x 1.30 (mm)
♦ Active Area: 17.26 x 3.18 (mm)
♦ Pixel Pitch: 0.18 x 0.20 (mm)
♦ Pixel Size: 0.16 x 0.18 (mm)
♦ Weight: 0.55 (g)
♦ Driver IC: SSD1306
♦ Interface: I2C
2、Absolute Maximum Ratings & Optical characteristic
3、Engineering drawing
|
