PMOLED

Location：Home > Products > PMOLED

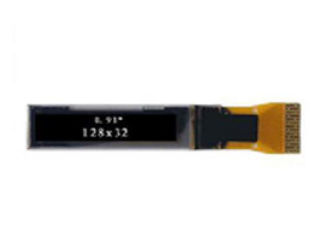

Model：	0.91" FJG-2832TSWEG02
Pixels(HxV)：	128 x 32
Outline DImension( HxV)：	30.0 x 11.5 x 1.23 mm
Active Area：	22.384 x 5.584 mm
Pixel Pitch：	0.159 x 0.159 mm
Driver：	SSD1306
Remark：	Monochrome (White/Blue)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/32 Duty

♦ Number of Pixels: 128 × 32
♦ Panel Size: 30.0 × 11.5 × 1.23 (mm)
♦ Active Area: 22.384 × 5.584 (mm)
♦ Pixel Pitch: 0.175 × 0.175 (mm)
♦ Pixel Size: 0.159 × 0.159 (mm)

♦ Weight: 1.05g

♦ Driver IC: SSD1306

♦ Interface: IIC

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing
