PMOLED

Location：Home > Products > PMOLED

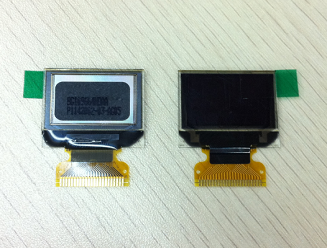

Model：	0.95“ FJG-9664HDDAG01
Pixels(HxV)：	96 x 64
Outline DImension( HxV)：	25.70 x 22.20 x 1.50 mm
Active Area：	20.14 x 13.42 mm
Pixel Pitch：	0.05 x 0.19 mm
Driver：	SSD1331Z
Remark：	Full Color（65K , 57% NTSC）

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: 65,536 Colors (Maximum)
♦ Drive Duty: 1/64 Duty

♦ Number of Pixels: 96 (RGB) × 64
♦ Panel Size: 25.70 × 22.20 × 1.50 (mm)
♦ Active Area: 20.14 × 13.42 (mm)
♦ Pixel Pitch: 0.07 × 0.21 (mm)
♦ Pixel Size: 0.05 × 0.19 (mm)
♦ Weight: 1.8 (g)

♦ Driver IC: SSD1331Z

♦ Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing
