PMOLED

Location：Home > Products > PMOLED

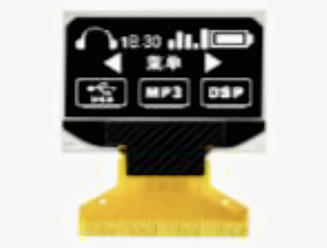

Model：	0.96” FJG-2864TSWBF01
Pixels(HxV)：	128 x 64
Outline DImension( HxV)：	24.7 x 16.6 x 1.28 mm
Active Area：	21.74 x 11.18 mm
Pixel Pitch：	0.154 x 0.154 mm
Driver：	ST7315
Remark：	Monochrome (White/Blue)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/64 Duty
♦ Number of Pixels: 128 x 64
♦ Panel Size: 24.7 x 16.6 x 1.28 (mm)
♦ Active Area: 21.74 x 11.18 (mm)
♦ Pixel Pitch: 0.17 x 0.17 (mm)
♦ Pixel Size: 0.154 x 0.154 (mm)
♦ Weight: 1.09g

♦ Driver IC: ST7315

♦ Interface: 3/4-wire SPI; I2C

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing

Welded type

Connector
