PMOLED

Location：Home > Products > PMOLED

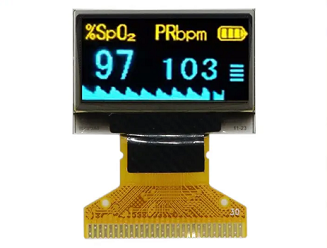

Model：	0.96“ FJG-2864KMBEG01
Pixels(HxV)：	128 x 64
Outline DImension( HxV)：	26.70 x 19.26 x 1.24 mm
Active Area：	21.744 x 11.204 mm
Pixel Pitch：	0.154 x 0.154 mm
Driver：	SSD1306 / ST7315
Remark：	Monochrome (Yellow&Blue)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (Yellow&Blue)
♦ Drive Duty: 1/64 Duty
♦ Number of Pixels: 128 x 64
♦ Panel Size: 26.70 x 19.26 x 1.4 (mm)
♦ Active Area: 21.744 x 11.204 (mm)
♦ Pixel Pitch: 0.17 x 0.17 (mm)
♦ Pixel Size: 0.154 x 0.154 (mm)
♦ Weight: 1.54 (g)

♦ Driver IC: SSD1306

♦ Interface:8-bit 68XX/80XX Parallel, 3-/4-wire SPI, IIC

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing
