PMOLED

Location：Home > Products > PMOLED

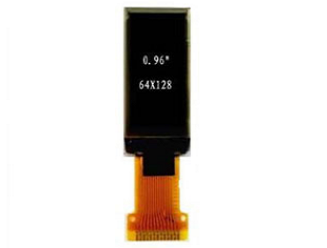

Model：	0.96" FJG-6428TSWCG01
Pixels(HxV)：	64 x 128
Outline DImension( HxV)：	14.0 x 28.0 x 1.22 mm
Active Area：	10.86 x 21.74 mm
Pixel Pitch：	0.15 x 0.15 mm
Driver：	SSD1312
Remark：	Monochrome (White)

Detailed information

1、Basic parameter

♦ Display Mode: Passive Matrix
♦ Display Color: Monochrome (White)
♦ Drive Duty: 1/128 Duty

♦ Number of Pixels: 64 x 128
♦ Panel Size: 14 x 28 x 1.22 (mm)
♦ Active Area: 10.86 x 21.74 (mm)
♦ Pixel Pitch: 0.17 x 0.17 (mm)
♦ Pixel Size: 0.15 x 0.15 (mm)

♦ Driver IC: SSD1312

♦ Interface: 4-wire SPI, I2C

2、Absolute Maximum Ratings & Optical characteristic

3、Engineering drawing
