Customized LCD

Location：Home > Products > Customized LCD

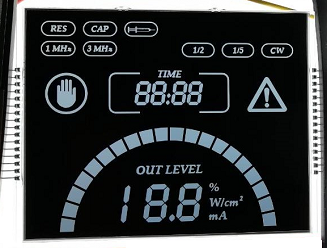

Model：	VA Segment code LCD
Pixels(HxV)：	Segment code LCD
Outline DImension( HxV)：	103/108 x 83 x 2.8 mm
Active Area：	100 x 80 mm
Pixel Pitch：	/
Driver：	/
Remark：	Customized Segment code LCD

Detailed information

Display Type: VA TN / Negative
View Direction: 6 O' CLOCK
Polarizer Mode: Transmissive
Driver Method: 1/3 Duty 1/2 Bias
Operating Voltage: 5V, 60Hz
Operating Temperature: -20 ~ 70 °C
Storage Temperature: -30 ~ 80 °C

Connection: Pins
