Customized LCD

Location：Home > Products > Customized LCD

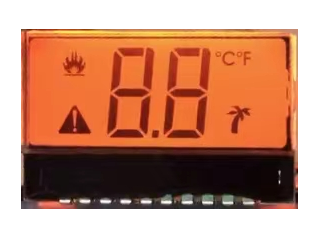

Model：	TN Segment code COG module
Pixels(HxV)：	Segment code LCD
Outline DImension( HxV)：	34.0 x 21.5 x 11.6 mm
Active Area：	31.5 x 13.0 mm
Pixel Pitch：	/
Driver：	ST7033
Remark：	Customized COG module

Detailed information

Display Type: TN / Positive
View Direction: 12 O' CLOCK

Polarizer Mode: Transmissive

Driver IC: ST7033

Driver Method: 1/4 Duty 1/3 Bias
Operating Voltage: VDD = 3.3V, VLCD = 4.0V, VF = 2.0V, IF = 45mA
Operating Temperature: -20 ~ 70 °C
Storage Temperature: -30 ~ 80 °C

Connection: COG / Pins
